- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com
- Brand Name
- Omada
- Product Type
- Wireless Router
- Technical Information
- Memory Technology
- DDR4 SDRAM
- Standard Memory
- 512 MB
- Maximum Upload Speed
- 6.25 MB/s
- Wireless Specifications
- Broadband Transmission Technology
- DSL
- VDSL2
- ADSL2+
- ADSL2
- ADSL
- Cellular Generation
- 4G+
- Cellular Network Supported
- LTE 2100
- LTE 1800
- LTE 850
- LTE 2600
- LTE 900
- LTE 700
- LTE 800
- LTE 1450
- LTE 2300
- LTE 2500
- HSDPA 1800
- HSDPA 850
- HSDPA 900
- HSDPA 2100
- WCDMA 1800
- WCDMA 2100
- WCDMA 850
- WCDMA 900
- Cellular Data Connectivity Technology
- LTE Cat 6
- LTE
- DC-HSDPA
- HSPA+
- HSDPA
- HSUPA
- WCDMA
- Total Number of Antennas
- 2
- Number of External Antennas
- 2
- Total Wireless Transmission Speed
- 43.75 MB/s
- Encryption Standard
- AES 256-bit
- SHA-1
- SHA-256
- SHA-384
- SHA-512
- DES
- 3DES
- AES (128-bit)
- AES (192-bit)
- AES (256-bit)
- MD5
- SHA-2 384-bit
- SHA-2 512-bit
- Firewall Type
- NAT
- Interfaces/Ports
- Total Number of Network Ports
- 5
- Number of Network (RJ-45) Ports
- 4
- USB
- Yes
- Number of Broadband (RJ-45) Ports
- 1
- USB Standard
- USB 3.0
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP (mini-GBIC)
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- VPN Supported
- Yes
- Multi-SIM Supported
- Yes
- Number of SIM Card Supported
- 2
- SIM Size Supported
- Nano
- Storage
- Flash Memory Capacity
- 256 MB
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- Height
- 44 mm
- Width
- 294 mm
- Depth
- 180 mm
- Miscellaneous
- Package Contents

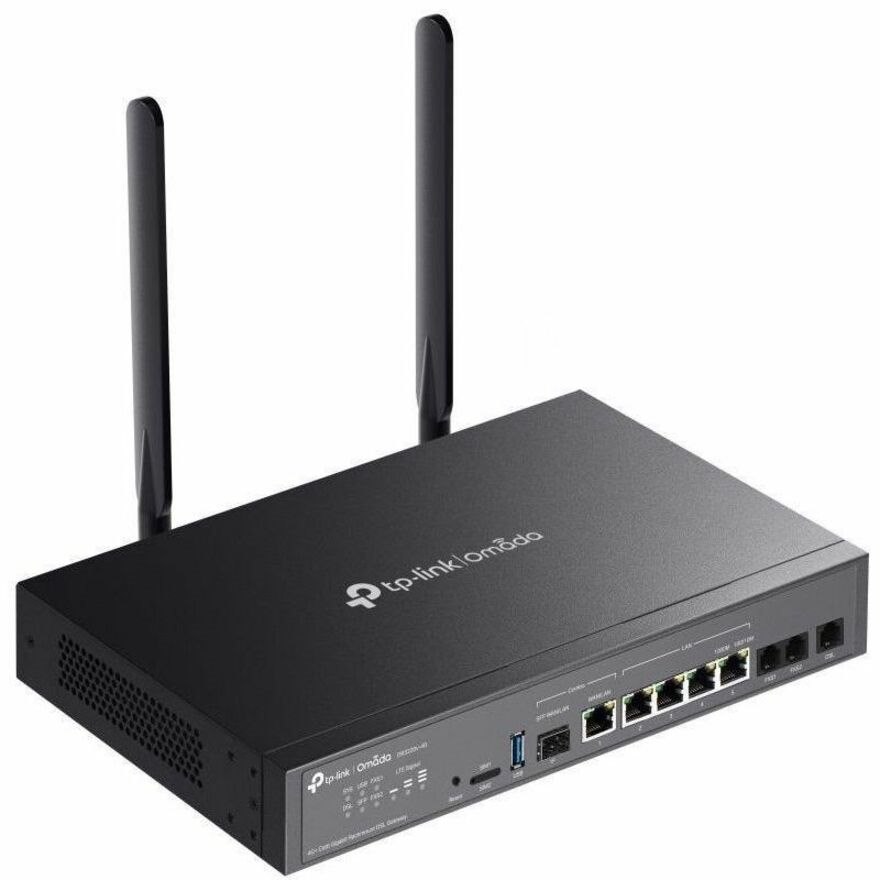

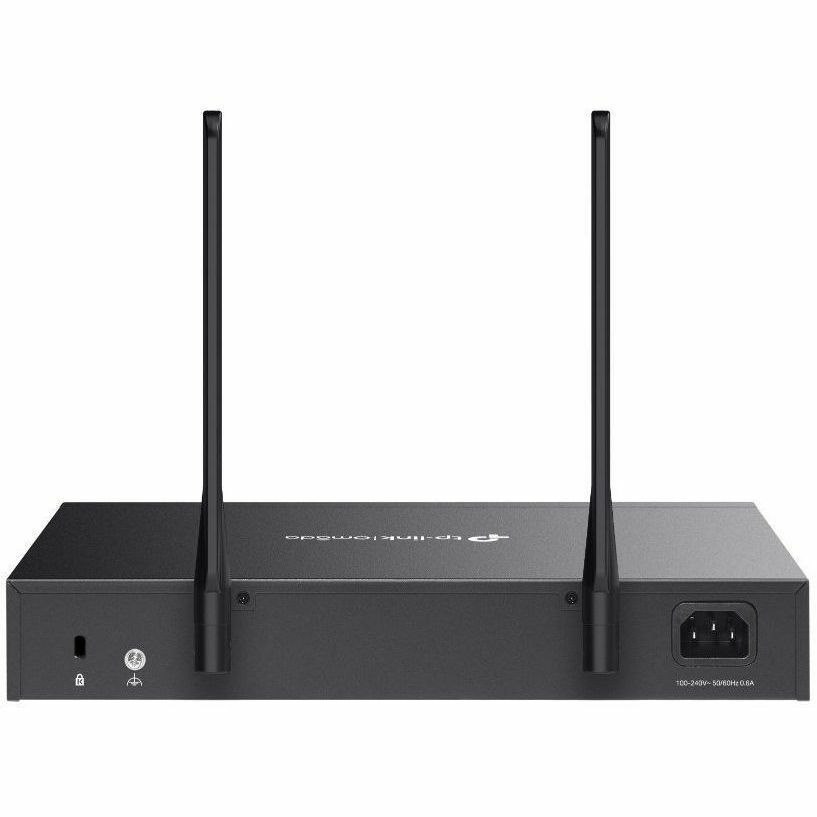

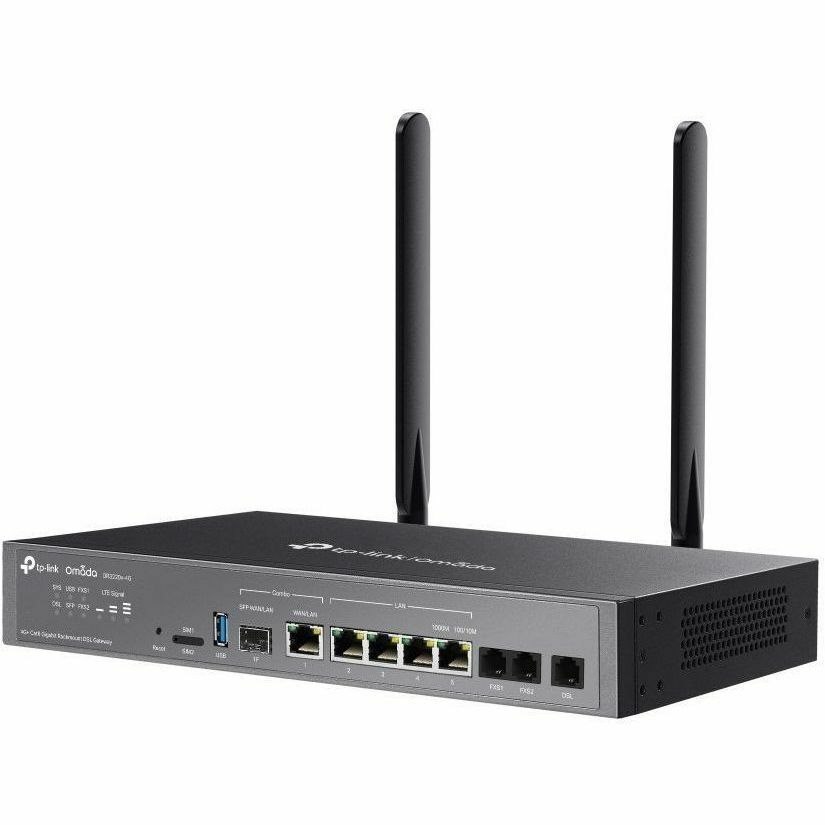

- DR3220v-4G Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway
- Power Cord
- Ethernet Cable
- Phone Cable
- Rubber Feet
- SIM Card Eject Pin
- Rackmount Kit
- Antenna Extension Base
- Quick Installation Guide
- Certifications & Standards
CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
