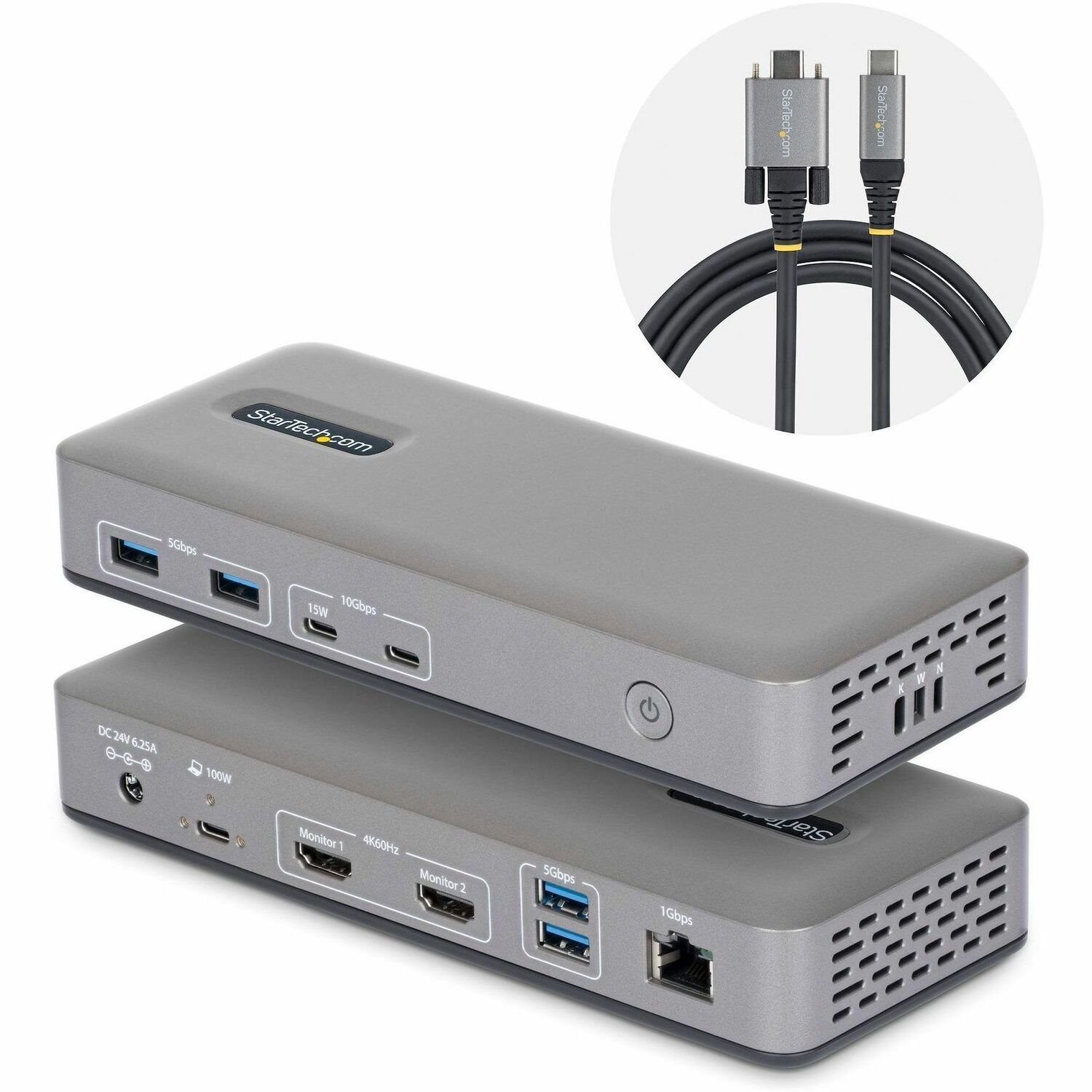

Connect up to two 4K 60 Hz HDMI displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.
Uncompressed Video Over USB-C
Connect up to two 4K 60Hz HDMI monitors through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression
Driverless Deployment
Features plug-and-play functionality on Windows with no drivers or software required. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.
Flexible, High-Speed I/O
This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.
Mounting and Security
This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Device Supported
- Notebook
- Monitor
- Computer
- Cable Length
- 1 m
- Features
- Plug and Play
- Power Delivery Pass-through
- LED Power Indicator
- Management Features
- PXE Boot
- Number of Displays Supported
- 2
- Screen Mode Supported
- 4K @ 60Hz
- Supported Resolutions
- 3840 x 2160
- Maximum Data Transfer Rate
- 1.25 GB/s
- Security Slot Type
- Noble Wedge Security Slot
- Nano Security Slot
- Kensington Security Slot
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB 3.2 (Gen 2) Type C
- Total Number of USB Ports
- 6
- USB Type-A
- Yes
- Number of USB 3.2 Gen 1 Type-A Ports
- 4
- Number of USB 3.2 Gen 2 Type-C Ports
- 2
- Number of USB Type-A Ports
- 4
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 x USB 3.2 Type-C (24 Pin, Gen 2, 10Gbps, 15W Power)
- Number of USB Type-C Ports
- 2
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- HDMI
- Yes
- Number of HDMI Ports
- 2
- USB Power Delivery
- 100W
- Software
- Operating System Supported
- Windows 10
- Windows 11
- Ubuntu 24.04
- Power Description
- Maximum Power Supply Wattage
- 150 W
- Power Source Type
- Power Adapter
- Physical Characteristics
- Color Family
- Grey
- Product Color
- Space Gray
- Height
- 27.9 mm
- Width
- 78.7 mm
- Weight (Approximate)
- 272.2 g
- Miscellaneous
- Package Contents
- 196UE-USBC-DOCK
- 1 x 3.3ft (1m) Host Cable
- 1 x Universal Power Adapter (UK/EU)
- 1 x Product Documentation
- Kensington Security Slot
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
