- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Marketing Information

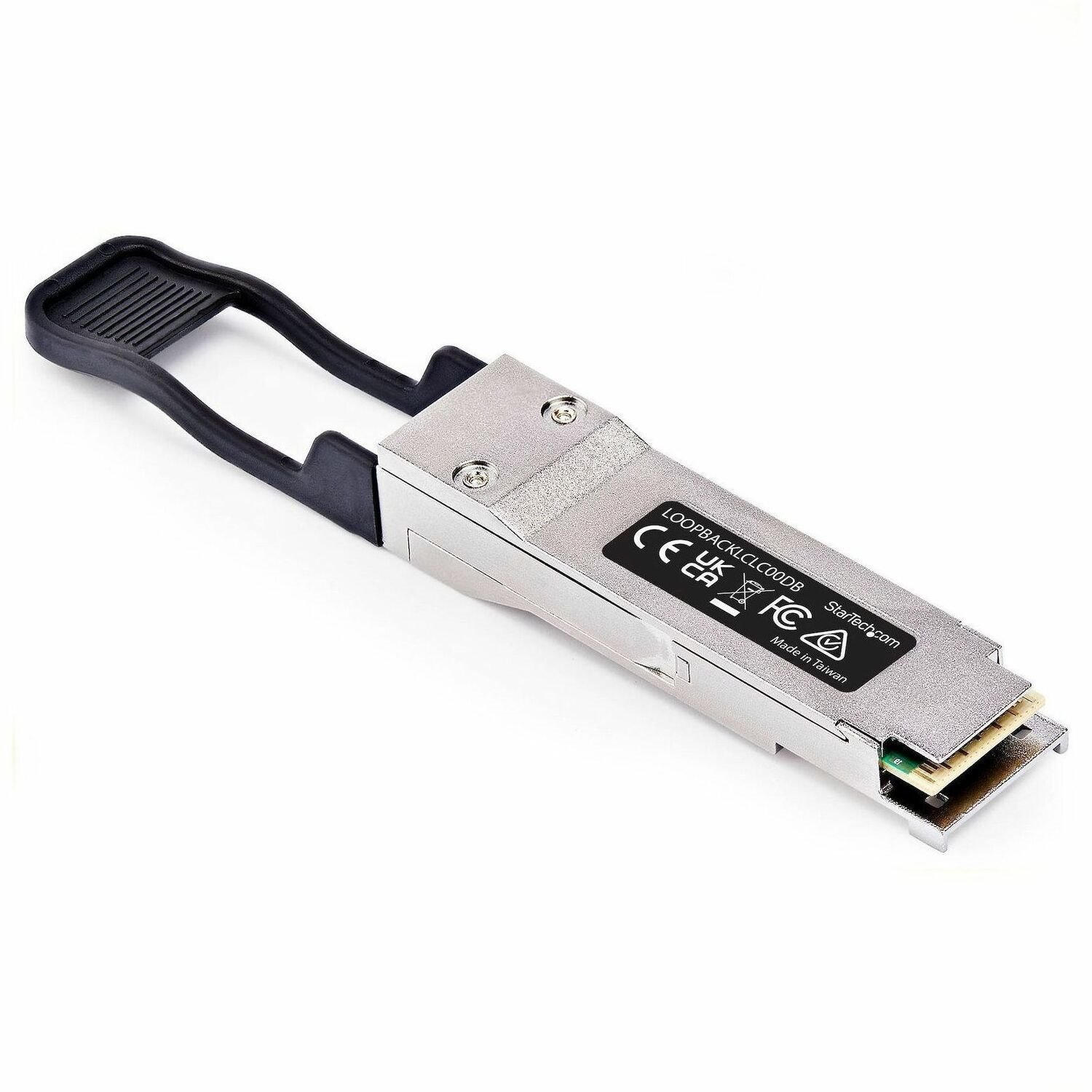

This QSFP28 Loopback Module is designed for testing 100G ports in switches, NICs, and other QSFP28-equipped devices. It supports passive electrical loopback for verifying signal continuity, link stability, and port behavior without requiring active optics.
Test 100G QSFP28 Connections
The QSFP28 Loopback Adapter emulates 4-lane electrical testing for QSFP28 ports operating at 100Gbps, and supports 40GBASE and 100GBASE Ethernet. It is MSA compliant and meets IEEE 802.3 requirements for reliable performance and universal compatibility.
Accurate Signal Diagnostics
Perform electrical loopback testing for full 100G link verification. Ensure consistent signaling with 100Ω impedance and low jitter for stable, repeatable test results under real-world conditions.
For Enterprise Network Switches
Connect directly to QSFP28 ports on switches, routers, and NICs for inline port testing. Compact and low-power, it is an essential tool for network technicians and IT pros in data centers and edge or on-prem installations.
- Packaged Quantity
- 1 Box
- Product Type
- QSFP28
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Interfaces/Ports Details
- 1 x 100GBase-X Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 100 Gigabit Ethernet
- Network Technology
- 100GBase-X
- Maximum Data Transfer Rate
- 100 Gbit/s
- Environmental Conditions
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 75°C
- Physical Characteristics
- Color Family
- Silver
- Product Color
- Silver
- Product Material
- Plastic
- Metal
- Height
- 12.7 mm
- Width
- 17.8 mm
- Length
- 127 mm
- Weight (Approximate)
- 36.9 g
- Miscellaneous
- Compatibility
MSA Compliant
- TAA Compliant
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
