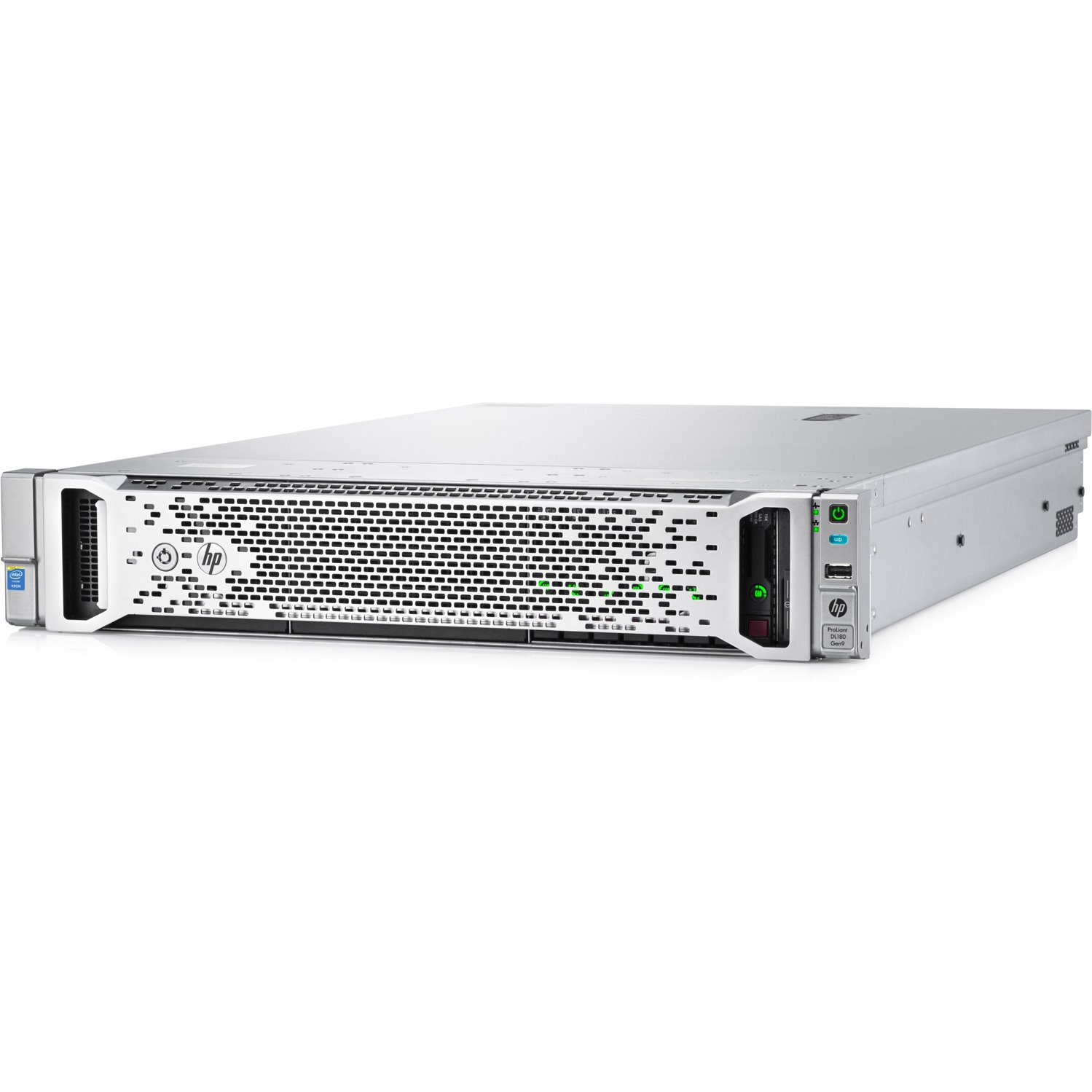

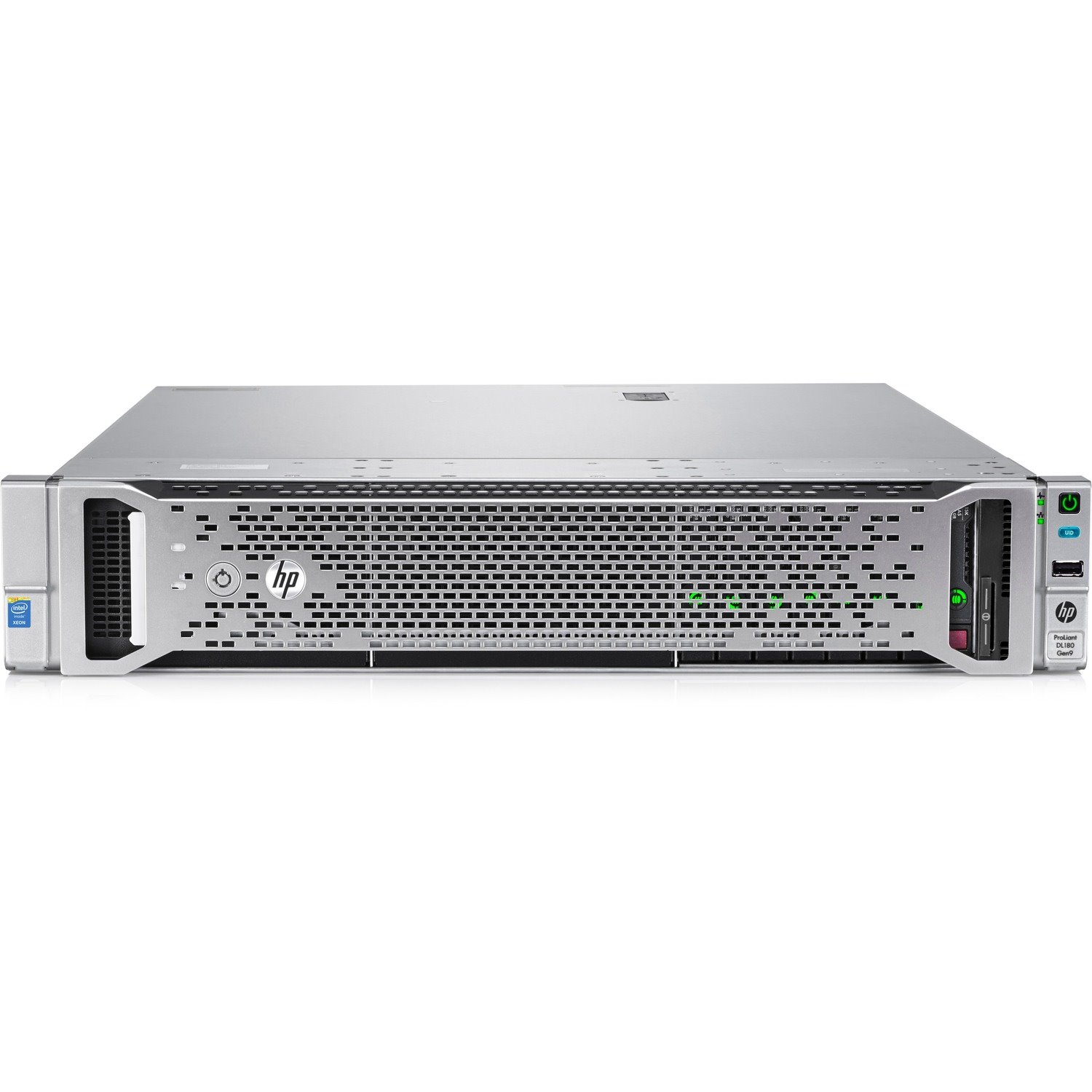

The new standard for growing data center needs. Delivering an optimized 2U server, designed with the right balance of expandability, performance, reliability, and manageability-all in a new compact chassis. The ideal platform for SMBs and enterprises running applications, which need the right mix of compute and storage.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Line
- ProLiant
- Product Series
- DL180 G9
- Product Type
- Server
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Type
- Xeon
- Processor Model
- E5-2609 v3
- Processor Core
- Hexa-core (6 Core)
- Processor Speed
- 1.90 GHz
- Cache
- 15 MB
- QuickPath Interconnect
- 6.40 GT/s
- 64-bit Processing
- Yes
- Hyper-Threading
- No
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C610
- Memory
- Standard Memory
- 8 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2133/PC4-17000
- Total Number of Memory Slots
- 16.0
- Memory Card Reader
- Yes
- Memory Card Supported
- microSD
- Controllers
- Controller Type
- 12Gb/s SAS
- Serial ATA
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5
- I/O Expansions
- Number of Total Expansion Bays
- 9
- Number of External 5.25" Bays
- 1
- Number of Internal 2.5" Bays
- 8
- Total Number of Expansion Slots
- 3.0
- Number of PCI Express x8 Slots
- 3
- Display & Graphics
- Graphics Controller Model
- G200eH2
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 5
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Operating System
- Operating System
- No
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 550 W
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 2U
- Height
- 87.4 mm
- Width
- 445.5 mm
- Depth
- 607.1 mm
- Weight (Approximate)
- 16.59 kg
- Miscellaneous
- Compatibility
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
- Certifications & Standards
- ACPI 2.0b Compliant
- PCIe 3.0 Compliant
- PXE Support
- WOL Support
- Microsoft Logo Certifications
- FCC Rating Class A
- CISPR 22
- EN55022
- EN55024
- FCC CFR 47, Pt 15
- ICES-003
- CNS14336-1
- CNS13438
- GB4943
- GB9254
- EN 61000-3-2
- EN 61000-3-3
- EN 60950-1
- IEC 60950-1
- Environmentally Friendly
- Yes
