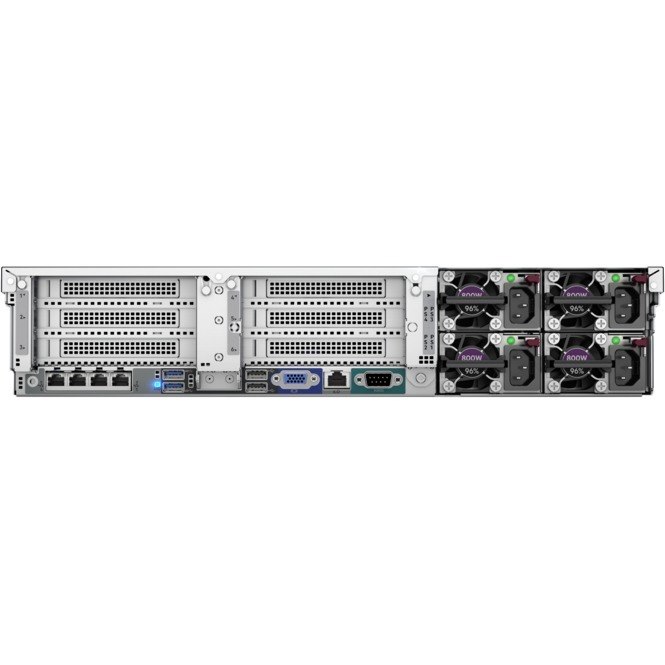

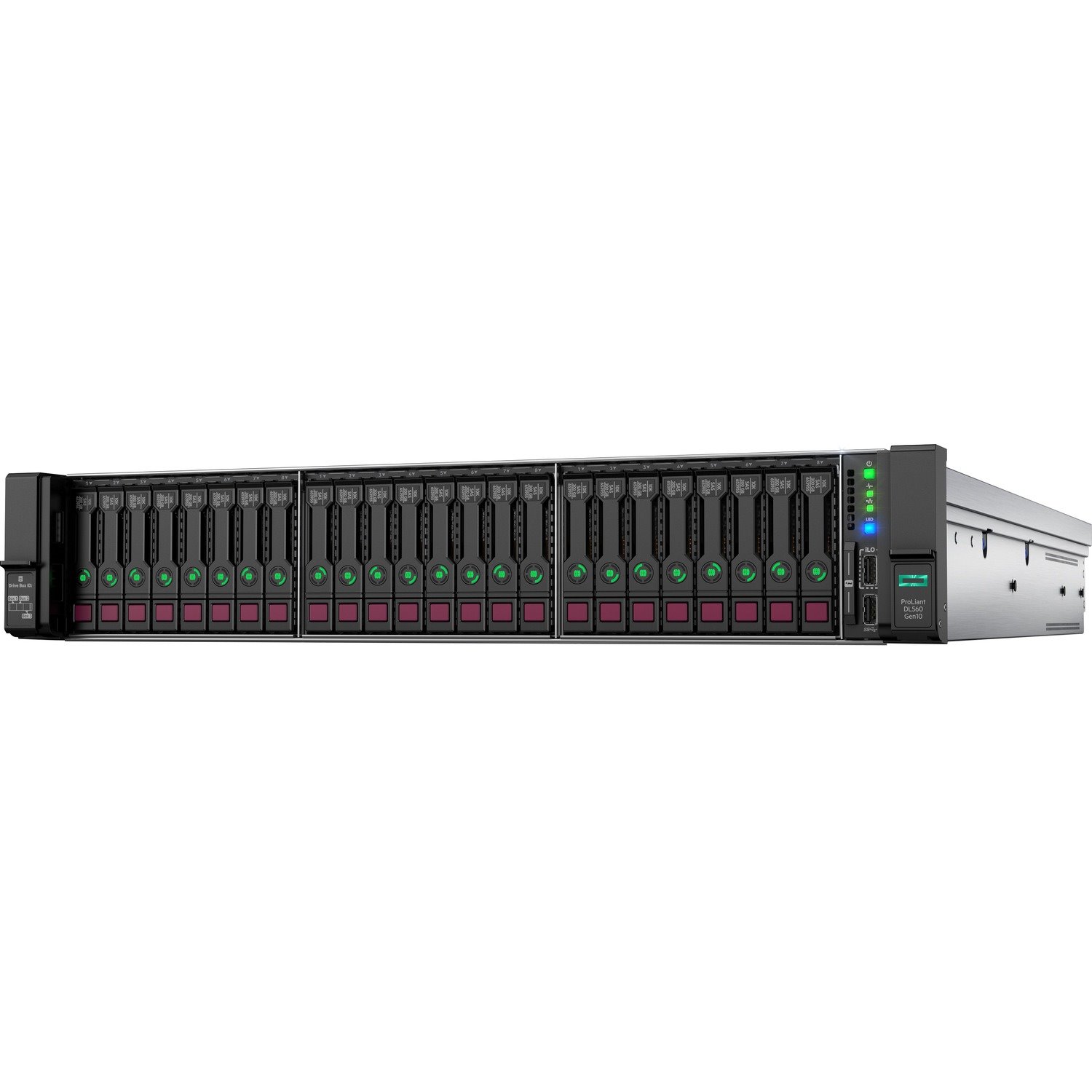

The HPE ProLiant DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest 2nd generation Intel® Xeon® Scalable processors, the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to eight PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.
The HPE ProLiant DL560 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Line
- ProLiant
- Product Series
- DL560 G10
- Product Type
- Server
- Processor
- Number of Processors Supported
- 4
- Number of Processors Installed
- 4
- Processor Manufacturer
- Intel
- Processor Type
- Xeon Platinum
- Processor Model
- 8268
- Processor Core
- Tetracosa-core (24 Core)
- Processor Speed
- 2.90 GHz
- Memory
- Standard Memory
- 512 GB
- Memory Technology
- DDR4 SDRAM
- Total Number of Memory Slots
- 48.0
- Number of Occupied Memory Slots
- 16
- Storage
- Total Hard Drive Capacity
- No
- Controllers
- Controller Type
- 12Gb/s SAS
- RAID Supported
- Yes
- I/O Expansions
- Number of Internal 2.5" Bays
- 16
- Display & Graphics
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- 25 Gigabit Ethernet
- Operating System
- Operating System
- No
- Power Description
- Input Voltage
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 1.60 kW
- Redundant Power Supply
- Yes
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 2U
- Height
- 87.4 mm
- Width
- 445.5 mm
- Depth
- 754.6 mm
- Weight (Approximate)
- 34.12 kg
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
