- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Series
- 9100
- Product Type
- Router

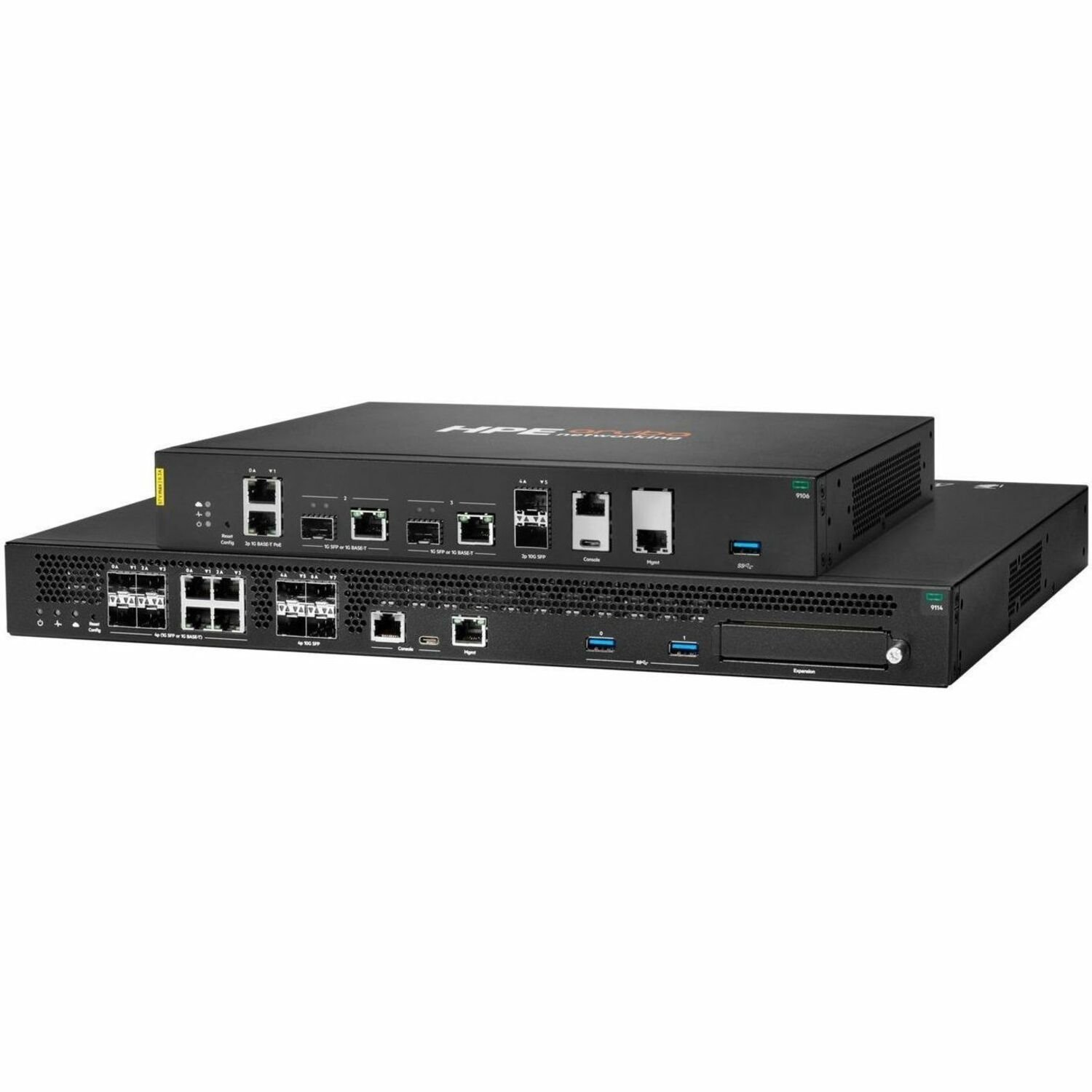

Scalable, secure, and intelligent cloud-based edge appliance
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to extend enterprise services securely and seamlessly to large branch and small campus networks. This purpose-built high-performance edge appliance delivers Wi-Fi roaming, 24x7 reliability, and always-on connectivity - even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System AOS-10 and HPE Aruba Networking Central, help drive efficient IT operations. The latest HPE Aruba Networking 9106 Hybrid Gateway models also support HPE Aruba Networking Wireless Operating System AOS-8.
The 9100 Series Hybrid Gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and strengthens security with automated and unified role-based policy enforcement for users and IoT across LAN, WAN and SD-WAN. This cloud-based edge appliance takes advantage of AOS 10 distributed software architecture and HPE Aruba Networking Central for greater scalability, security, and AI-powered optimization. Importantly, it adds the versatility for network services to be provided on-premises, allowing the HPE Aruba Networking 9100 Series Hybrid Gateways to bring needed scalability to campus wireless gateway use cases or to optimize local routing and services at branch networks.
Ideal for large branch deployments and small campus networks, the HPE Aruba Networking 9100 Series Hybrid Gateway is cloudmanaged which reduces on-site IT requirements. It can operate in several modes: as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.
- Technical Information
- High Availability Supported
- Yes
- AI-powered
- Yes
- Interfaces/Ports
- Total Number of Ports
- 4
- USB Standard
- USB Type-C
- USB 3.0 Type A
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 3
- Number of WAN Ports
- 1
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP (mini-GBIC)
- SFP+
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Power Description
- PoE (RJ-45) Port
- Yes
- Power Consumption
- 150 W
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 43.7 mm
- Width
- 294.8 mm
- Depth
- 201.1 mm
- Weight (Approximate)
- 2.31 kg
- Miscellaneous
- Certifications & Standards
- AOS 8.13.1
- AOS 10.7.2.1
- ARCN9106
- CSA/UL 62368-1:2014
- CSA/UL 62368-1:2019
- EN/IEC 62328-1, 2nd edition
- EN/IEC 62368-1, 3rd edition
- FCC Part 15, Class B
- EN55032, Class B
- ICES-003, Class B
- CNS13438, Class B
- EN55035
- EN 300 386
- KS C 9832:2019
- KS C 9835:2019
- AS/NZS CISPR32 Class B
- VCCI Class B
- Country of Origin
- Taiwan
