Power Cord Connects Data Center Equipment to Reliable AC Power

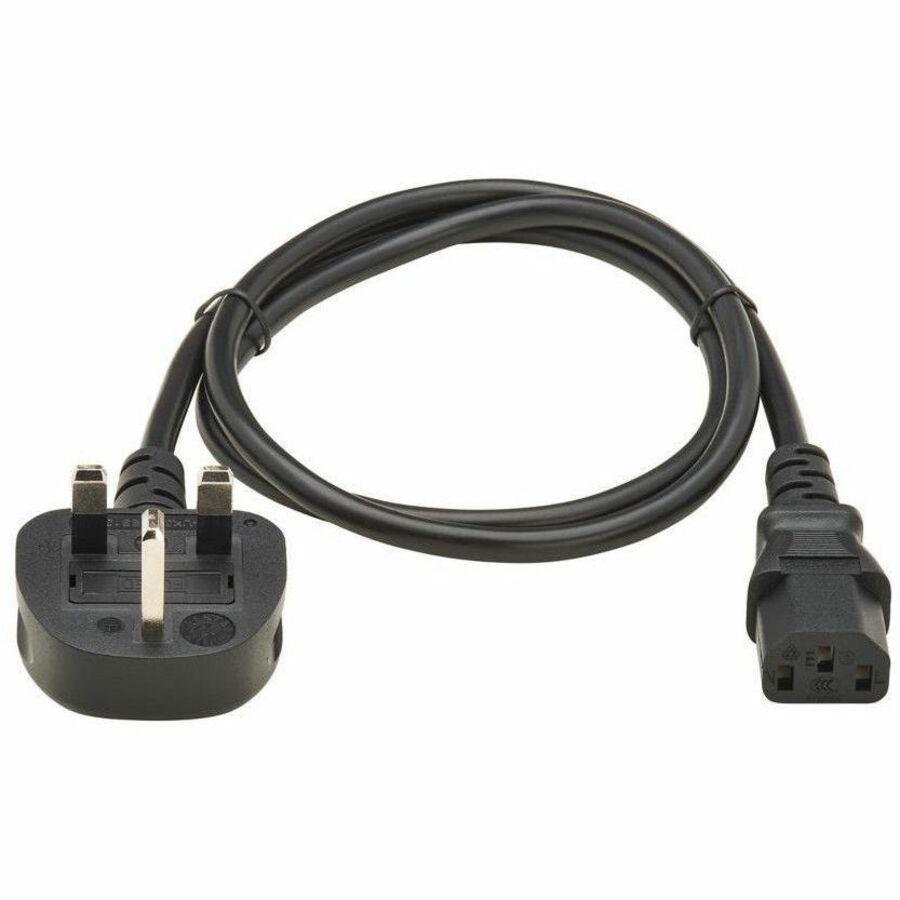

This VDE-compliant power cable connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet. It can also connect a computer, server, monitor or other device to a PDU, UPS or surge protector with BS 1363 outlets. Or you can extend an existing power connection up to one meter (3.3 feet). The P056-01M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.powerquality.eaton.com/UK/
- Brand Name
- Tripp Lite series
- Product Type
- Standard Power Cord
- Technical Information
- First End Connector Type
- BS 1363
- First End Connector Detail
- 1 x BS 1363 UK Male
- Second End Connector Type
- IEC 60320 C13
- Second End Connector Detail
- 1 x 3-pin IEC 60320 C13 Female
- Device Supported
- PDU
- Server
- UPS
- Surge Protector
- Monitor
- Network Device
- PC
- Computer
- Rack
- Workstation
- Localization
- United Kingdom
- Gauge
- 18
- Number of Conductors
- 3
- Power Description
- Voltage Rating
- 250 V AC
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
- Height
- 229.1 mm
- Width
- 178.1 mm
- Depth
- 12.7 mm
- Cord Length
- 1.01 m
- Weight (Approximate)
- 149.7 g
- Environmental Conditions
- Minimum Operating Temperature
- -15°C
- Maximum Operating Temperature
- 70°C
- Minimum Storage Temperature
- -15°C
- Maximum Storage Temperature
- 60°C
