- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.powerquality.eaton.com/UK/
- Brand Name
- Eaton
- Product Line
- Ellipse
- Product Type
- Standby UPS
Stay protected - work and play worry-free

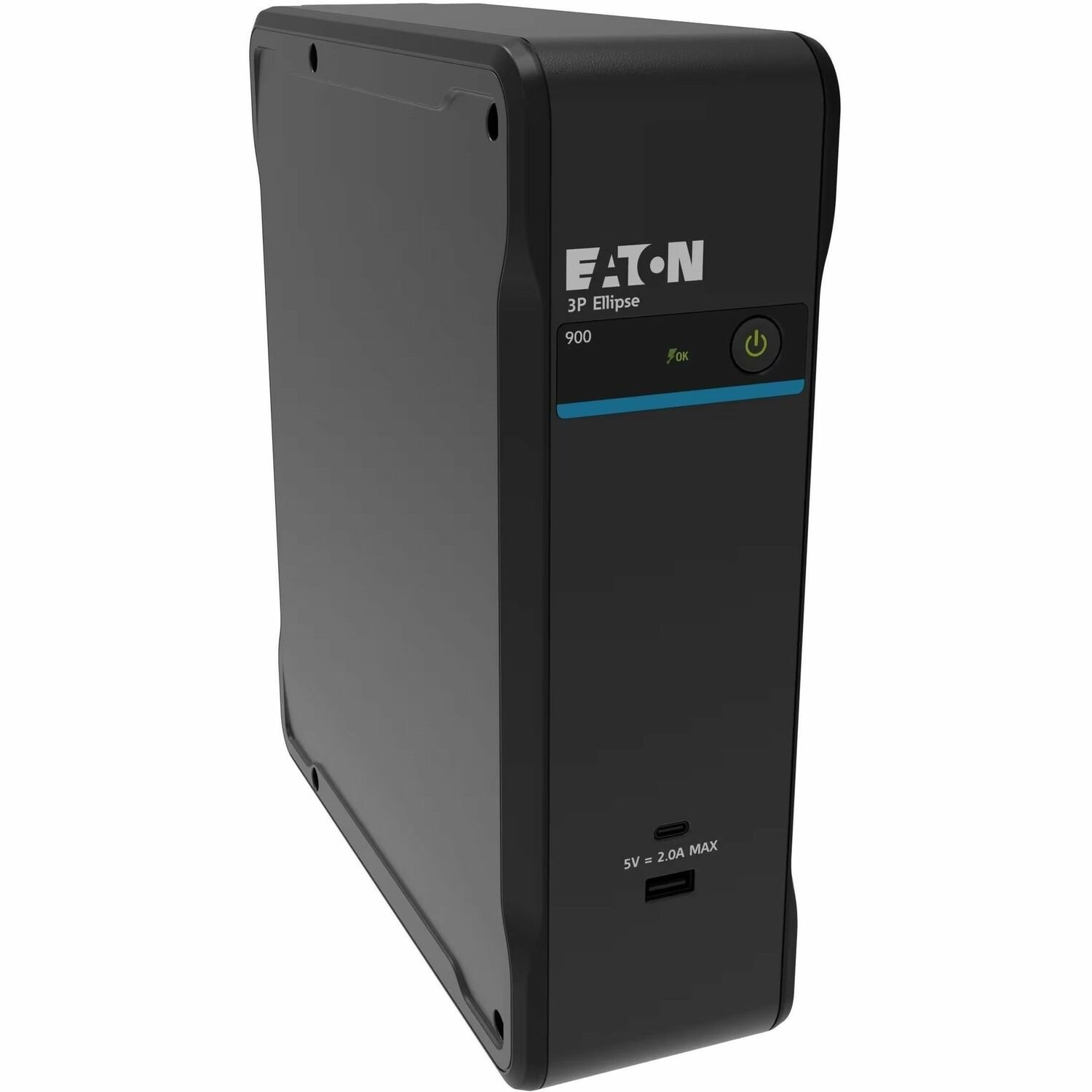

The 3P Ellipse UPS is Eaton's latest addition to its power protection solution portfolio. Sleek, attractively designed and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings
Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly.
Save yourself the hassle and the need for additional adapters, by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience.
Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.
Designed for your space
Complement any interior with 3P's contemporary good looks that also come with versatile usability. Flexible, multi-position design allows the UPS to fit seamlessly into any environment horizontally, vertically, as well as rack or wall-mounted (with optional kits).
Charge mobile devices whenever you need to using 3P's choice of USB-A and USB-C charging ports.
Watch, listen or work without distraction. Enjoy a silent user experience in both residential and business settings thanks to 3P's discreet, no-fan engineering.
Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the 'new normal' for many small businesses, cloud connectivity brings added control and peace of mind from any location.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
3 years on electronics and 2 years on battery
- Technical Information
- Receptacle Type
- USB Type A
- USB Type C
- IEC
- Receptacle Detail
- 1 x USB Type A
- 1 x USB Type C

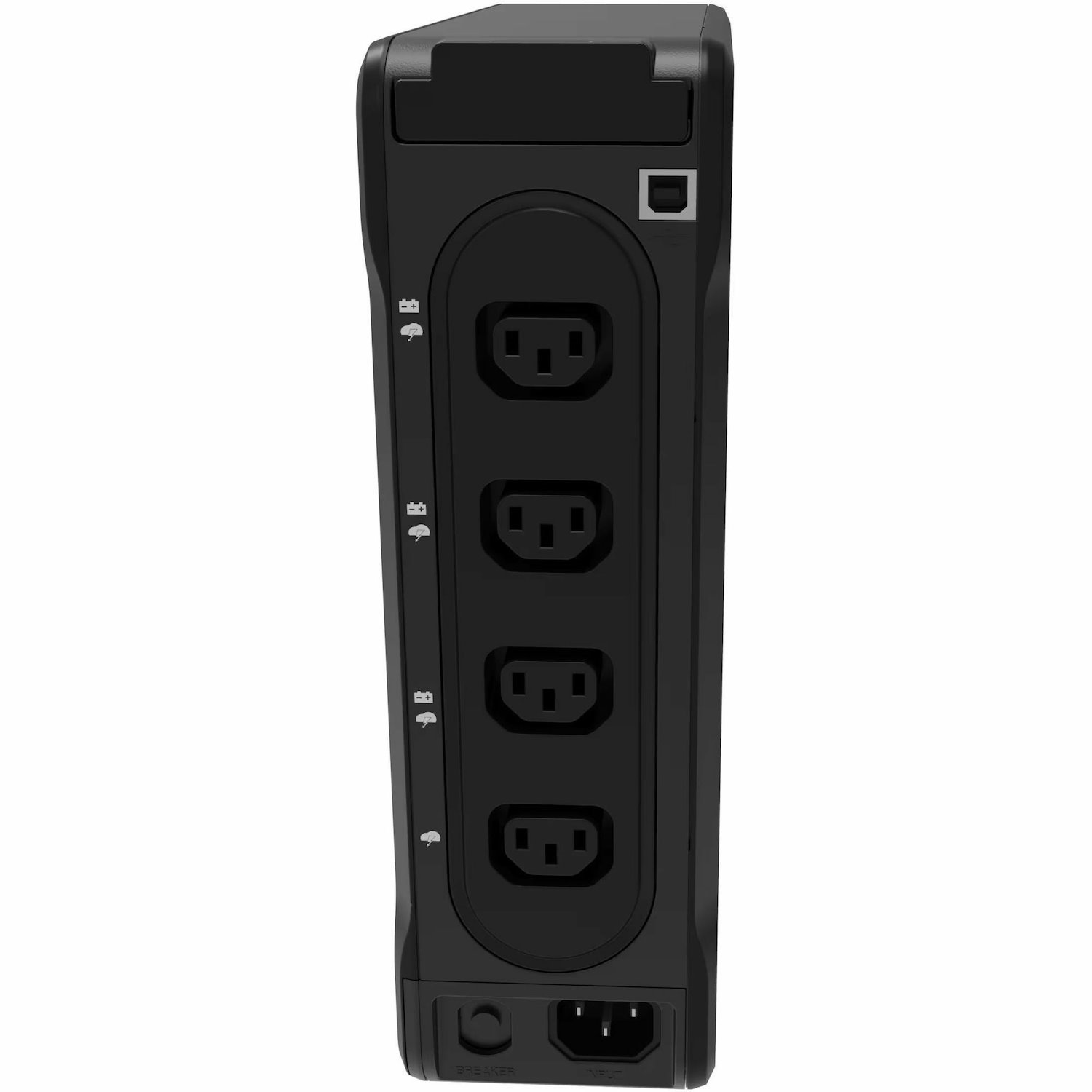

- 4 x IEC
- Number of Battery & Surge Outlets
- 3
- Number of Surge-only Outlets
- 1
- Application/Usage
- Residential
- Business
- Equipment
- Mobile Device
- Surge Suppression
- Yes
- Features
- Cold Start Function
- Power Description
- Load Capacity (VA)
- 900 VA
- Load Capacity (Watt)
- 540 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 220 V AC - 240 V AC
- 184 V AC - 264 V AC
- 160 V AC - 284 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 46 Hz
- 50 Hz
- 60 Hz
- 65 Hz
- Circuit Breaker
- Yes
- Interfaces/Ports
- USB
- Yes
- Number of USB Ports
- 3
- Battery Information
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Physical Characteristics
- Height
- 263 mm
- Width
- 81 mm
- Depth
- 235 mm
- Form Factor
- Rack/Wall Mountable
- Weight (Approximate)
- 4.40 kg
- Miscellaneous
- Certifications & Standards
- IEC 61643-11
- IEC 62040-1
- IEC 62040-2 C2
- IEC 62040-3
- IEC 61643-11
- T3
- PEP Ecopassport
- CE
- Cm
- UKCA
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Product Environmental Profile (PEP) ecopassport
