• General Information
• • Manufacturer
  • Dataram Corporation
  • Manufacturer Website Address
  • http://www.dataram.com/
  • Brand Name
  • Dataram
  • Product Type
  • RAM Module

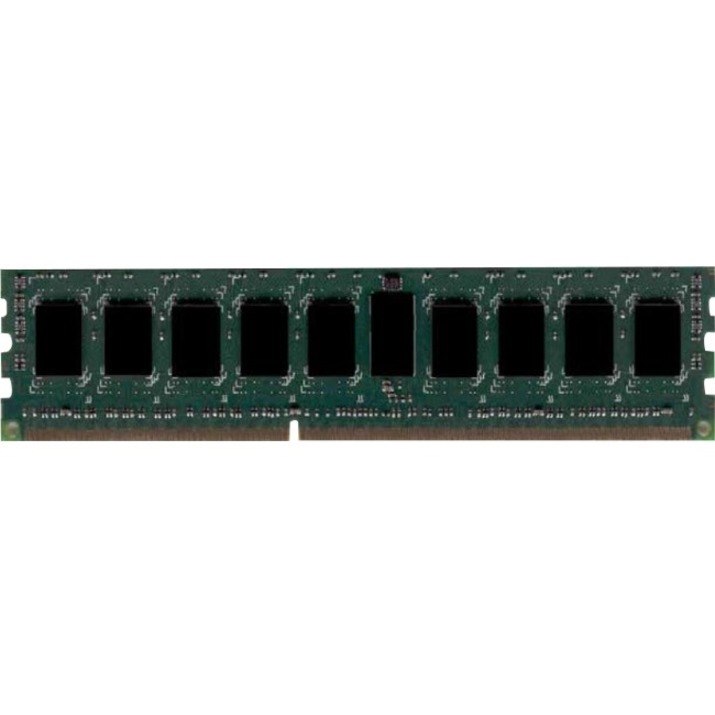

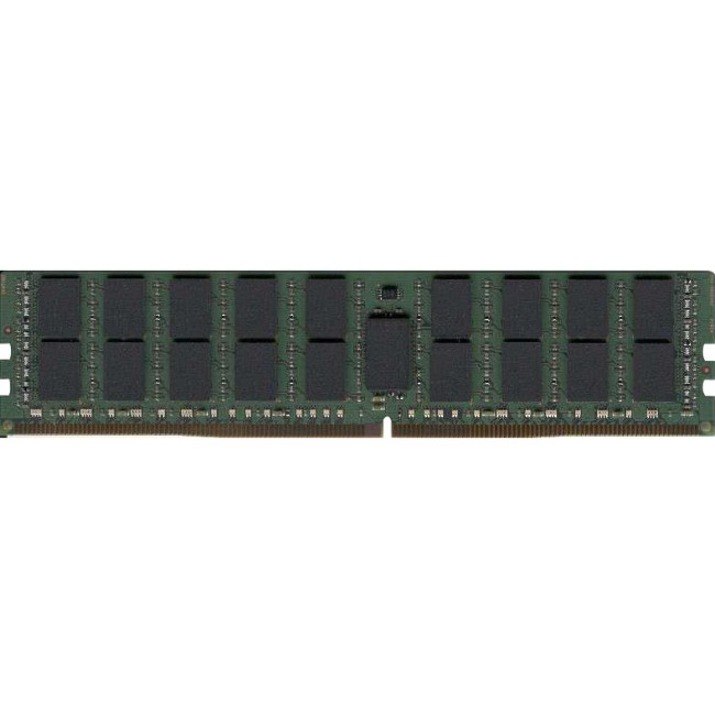

DVM16R1S4/8G is a registered 1Gx72 memory module, which conforms to JEDEC's DDR3-1600, PC3-12800 standard. The assembly is Single-Rank comprised of eighteen 1Gbx4 DDR3 SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
