- General Information
- Manufacturer
- Zhejiang Dahua Technology Co., Ltd.
- Manufacturer Website Address
- http://www.dahuasecurity.com
- Brand Name
- Dahua
- Product Line
- Lite
- Packaged Quantity
- 1
- Product Type
- Collaboration Display
- Warranty
- Limited Warranty
- 60 Month
- Technical Information
- Features
- OPS Type Compatible
- Display & Graphics
- Viewable Screen Size
- 1651 mm
- Screen Size Class
- 1651 mm
- Display Screen Type
- LCD
- Display Screen Technology
- In-plane Switching (IPS) Technology
- Vertical Alignment (VA)
- Backlight Technology
- Direct LED
- Screen Mode
- 4K UHD
- Screen Resolution
- 3840 x 2160
- Scan Format
- 2160p
- Aspect Ratio
- 16:9
- Response Time
- 8 ms
- Colour Supported
- 1.07 Billion Colors
- Contrast Ratio
- 4,000:1
- 1,200:1
- Brightness
- 400 cd/m²
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Graphics Controller Manufacturer
- ARM
- Graphics Controller Model
- Mali-G52 MP2 (2EE)
- Tempered Glass
- Yes
- Glass Thickness
- 4 mm
- Standard Refresh Rate
- 60 Hz
- Panel Life
- 50000 Hours
- Touchscreen Information
- Touchscreen
- Yes
- Multi-touch Screen
- Yes
- Number of Touch Points
- 40
- Touchscreen Technology
- Infrared (IrDA)
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Type
- Cortex A55
- Processor Speed
- 1.90 GHz
- Processor Core
- Quad-core (4 Core)
- Memory
- Standard Memory
- 8 GB
- Storage
- Flash Memory Capacity
- 64 GB
- Audio
- Speakers
- Yes
- Number of Speakers
- 2
- RMS Output Power
- 30 W
- Network & Communication
- Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- Interfaces/Ports
- HDMI
- Yes
- Number of HDMI Inputs
- 3
- Number of HDMI Outputs
- 1
- Total Number of USB Ports
- 11
- USB
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Number of VGA Ports
- 1
- VGA
- Yes
- Serial
- Yes
- S/PDIF Out
- Yes
- Software
- Operating System Platform
- Android
- Operating System
- Android 11
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Consumption
- 200 W
- Standby Power Consumption
- 500 mW
- Typical Power Consumption
- 120 W
- Physical Characteristics
- Color Family
- Dual Colour
- Product Color
- Black
- Silver
- Product Material
- Metal
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 500 x 400
- Mount Surface
- Wall
- Height
- 924.5 mm
- Width
- 1485.2 mm
- Depth
- 93 mm
- Weight (Approximate)
- 40 kg
- Miscellaneous
- Package Contents

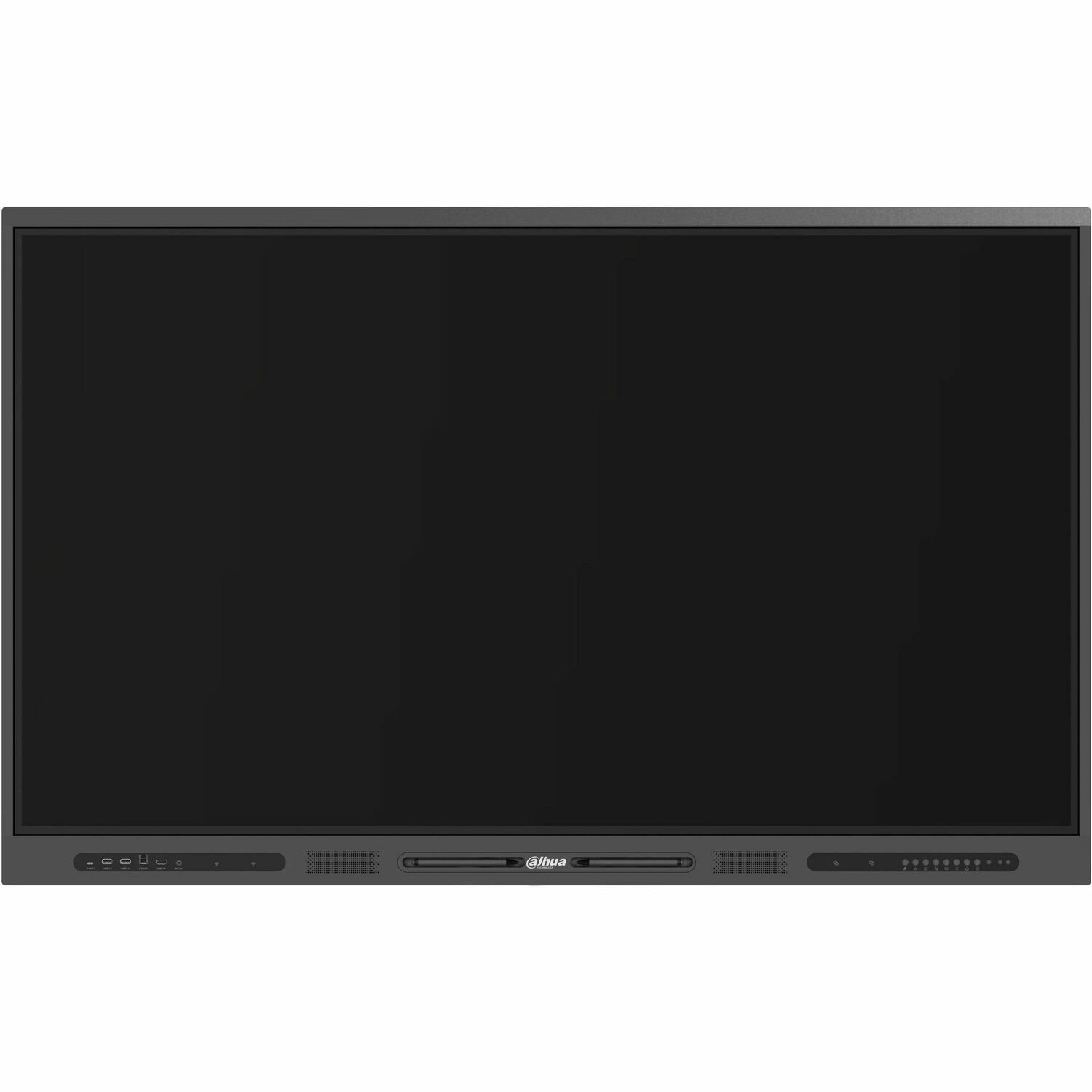

- LPH65-ST420 65 inch Smart Interactive Whiteboard
- 1 x Power cord
- 2 x Passive stylus pen
- 1 x HDMI cable
- 1 x Quick start guide
- 1 x Wall mount bracket (already installed on the whiteboard)
- 1 x Accessory package
- 1 x Remote control
- 1 x Legal and Regulatory Information
- Energy Star
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
