Easy switching to utility power during UPS maintenance

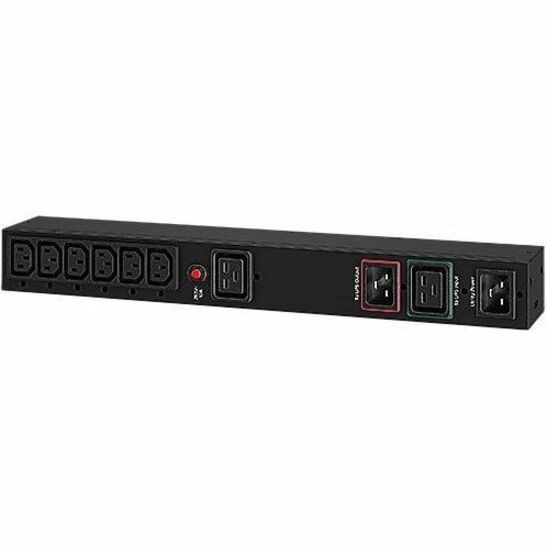

Designed for Uninterruptible Power Supply (UPS), the Maintenance Bypass PDU (MBP) Series allows utility power to bypass the UPS, so that users can perform quick and safe maintenance without having to shut down power system and connected equipment.
SERIES FEATURES
- 1U Rackmount
- LED Status Indicator
- Metal Housing
- Retaining Clip Design
- Rack Ears Included
- Cascading Design
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Type
- PDU
- Technical Information
- PDU Type
- Maintenance Bypass
- Plug/Connector Type
- IEC 60320 C20
- IEC 60320 C19
- Plug/Connector Detail
- 2 x IEC 60320 C20
- 1 x IEC 60320 C19
- Receptacle Type
- IEC 60320 C19
- IEC 60320 C13
- Receptacle Detail
- 1 x IEC 60320 C19
- 6 x IEC 60320 C13
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 220 V AC - 240 V AC
- Power Source
- UPS
- Input Current
- 16 A
- Circuit Breaker
- Yes
- Physical Characteristics
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 51 mm
- Width
- 433 mm
- Depth
- 76 mm
- Weight (Approximate)
- 1.30 kg
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Minimum Operating Humidity
- 0%
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Package Contents
- MBP20HVIEC6A 7-Outlets PDU
- Rack Ears
- Compatibility
CyberPower UPS's:
- OL1000ERTXL2U
- OL1500ERTXL2U
- OL2000ERTXL2U
- OL3000ERTXL2U
- OLS1000ERT2U
- OLS1500ERT2U
- OLS2000ERT2U
- OLS3000ERT2U
- OLS6000ERTXL3U
- OLS10000ERTXL3U
- OLS1000ERT2UA
- OLS2000ERT2UA
- OLS3000ERT2Ua
- Certifications & Standards
CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
