- General Information
- Manufacturer
- BenQ Corporation
- Manufacturer Website Address
- http://www.benq.co.uk
- Brand Name
- BenQ
- Product Series
- RE04
- Product Type
- Collaboration Display

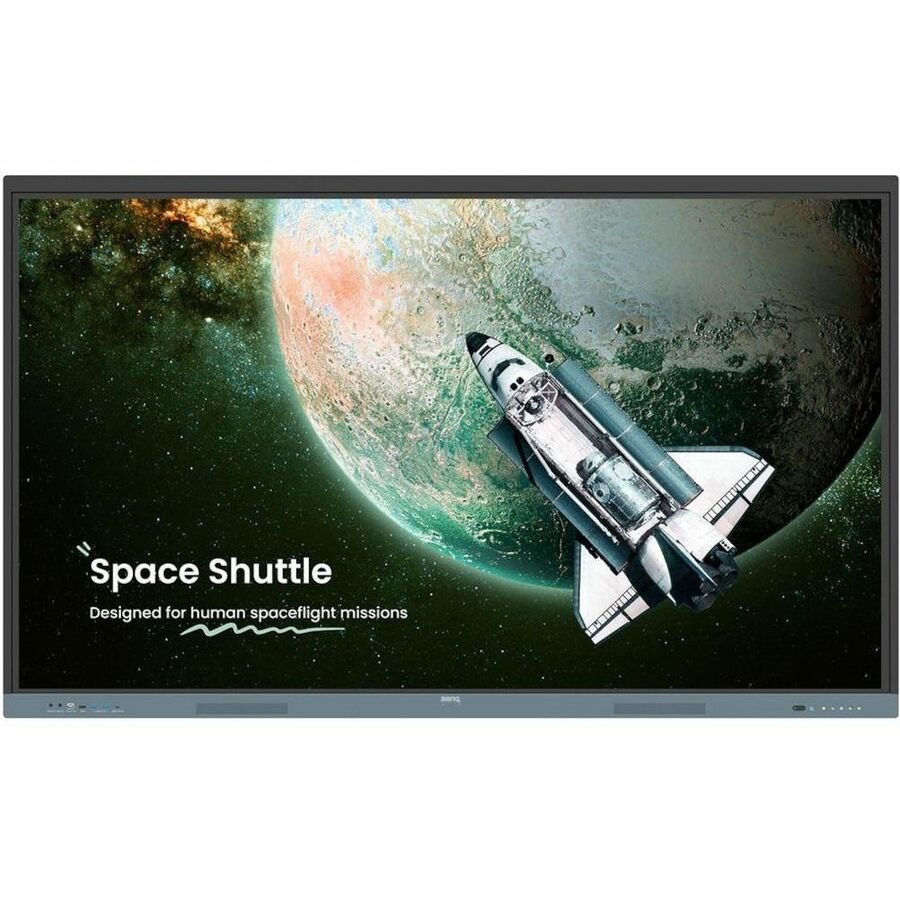

The BenQ Board RE04A is the Google ELDA-certified interactive display by BenQ. It combines the computing power of a 4-core Arm Cortex chipset, Precision IR touch, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
- Technical Information
- Surface Hardness
- 9H
- Display & Graphics
- Viewable Screen Size
- 2184.40 mm
- Screen Size Class
- 2184.40 mm
- Display Screen Type
- LCD
- Screen Mode
- 4K UHD
- Screen Resolution
- 3840 x 2160
- Scan Format
- 2160p
- Aspect Ratio
- 16:9
- Response Time
- 8 ms
- Colour Depth
- 10-bit
- Contrast Ratio
- 1,200:1
- 30,000:1
- Display Orientation
- Landscape
- Brightness
- 450 cd/m²
- Graphics Controller Manufacturer
- ARM
- Graphics Controller Model
- Mali-G52
- Ambient Light Sensor
- Yes
- Panel Life
- 50000 Hours
- Operation Hours
- 18 Hours/7 Days
- Color Gamut
- 72% NTSC
- Touchscreen Information
- Touchscreen
- Yes
- Multi-touch Screen
- Yes
- Number of Touch Points
- 40
- Touchscreen Technology
- Infrared (IrDA)
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Type
- Cortex A73
- Processor Core
- Quad-core (4 Core)
- Memory
- Standard Memory
- 8 GB
- Storage
- Flash Memory Capacity
- 64 GB
- Audio
- Speakers
- Yes
- Number of Speakers
- 2
- RMS Output Power
- 40 W
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- HDMI
- Yes
- Number of HDMI Inputs
- 3
- Number of HDMI Outputs
- 1
- Total Number of USB Ports
- 8
- Number of USB 2.0 Ports
- 4
- Number of USB 3.0 Ports
- 5
- USB
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Number of VGA Ports
- 1
- VGA
- Yes
- DisplayPort
- Yes
- Serial
- Yes
- S/PDIF Out
- Yes
- Software
- Operating System
- Android 14
- Software Included
- EZWrite 6
- InstaShare 2
- AMS
- DMS
- X-Sign Broadcast
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Consumption
- 157.20 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 800 x 600
- Mount Surface
- Wall
- Height
- 1163.9 mm
- Width
- 1961.8 mm
- Depth
- 87.7 mm
- Weight (Approximate)
- 62.85 kg
- Miscellaneous
- Package Contents
- RE8604A Collaboration Display
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 x Wall mount
- 2 x Pen
- 1 x Remote control
- Energy Star
- Yes
