- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus ROG
- Product Line
- Maximus Z890 Extreme
- Product Type
- Gaming Desktop Motherboard

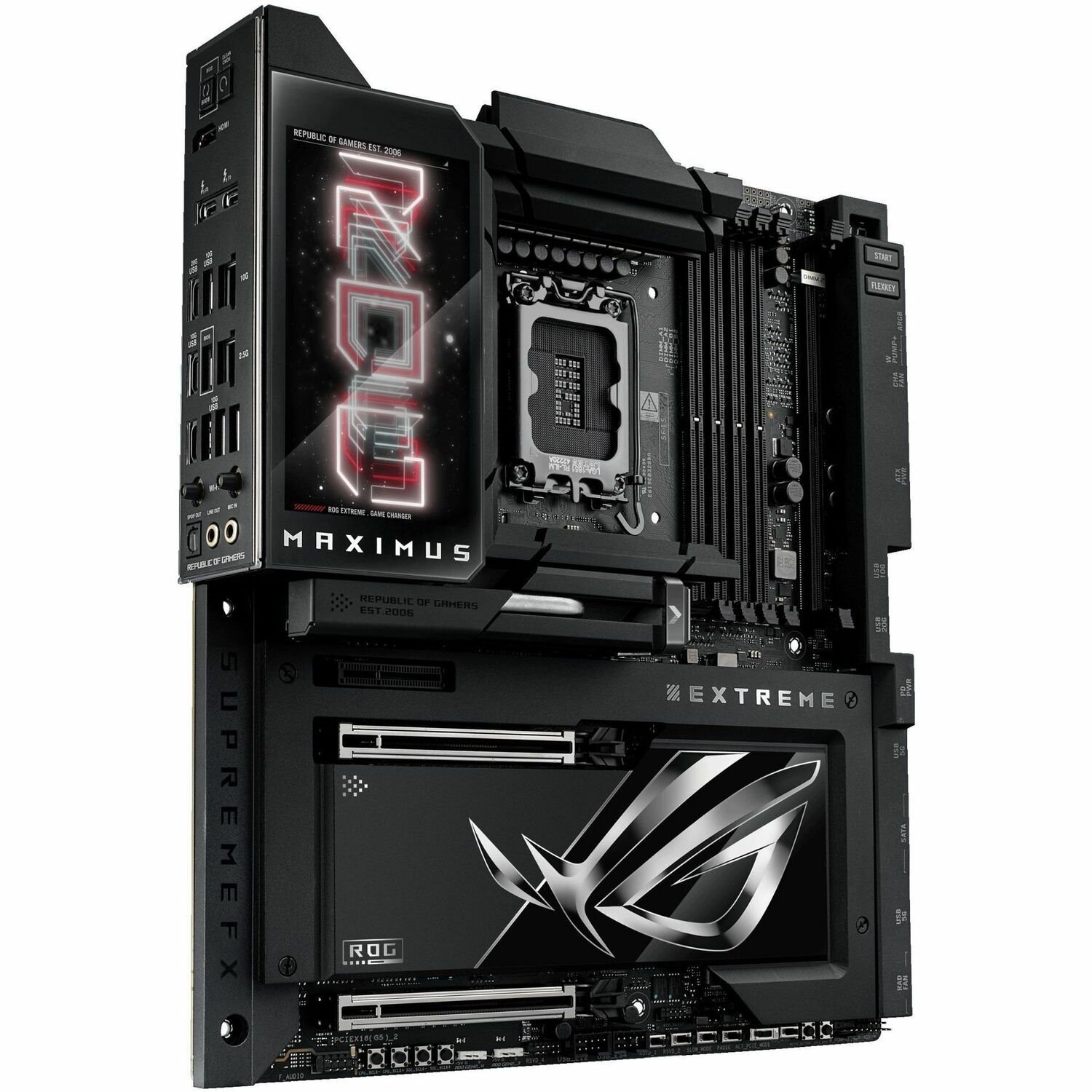

ROG Maximus Z890 Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel®Core™ Ultra Series 2 processors, DDR5 modules, PCIe®5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more - all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
ASUS AI INTELLIGENCE | AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed ofWiFi 7.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance OVERCLOCKING | NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
Performance MEMORY | DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Extreme.
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM FLEX
DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
M.2 Slots with ROG M.2 PowerBoost
The ROG Maximus Z890 Extreme features four onboard M.2 slots, all of which support ROG M.2 PowerBoost to help ensure that every onboard M.2 device can operate simultaneously at optimal performance.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z890
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1851
- Processor Supported
- Core Ultra
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 9200 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.4
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- 10Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11be
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 4.0
- PCI Express 5.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x4 Slots
- 1
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 10
- S/PDIF
- Yes
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 2
- Thunderbolt
- Yes
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 6
- Total Number of Onboard USB Ports
- 10
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- Extended ATX
- Width
- 305 mm
- Depth
- 277 mm
- Miscellaneous
- Package Contents
- MAXIMUS Z890 EXTREME Gaming Desktop Motherboard
- 1 x 1-to-3 ARGB splitter cable
- 1 x 1-to-2 ARGB splitter cable
- 2 x 1-to-4 fan splitter cable
- 2 x ROG weave SATA 6G cable packages
- 1 x 3-in-1 Thermistor cables pack
- 1 x ROG Q-DIMM.2 with heatsink
- 1 x M.2 pad package for ROG Q-DIMM.2
- 2 x Thermal pad for ROG Q-DIMM.2
- 2 x Thermal pad for M.2 22110
- 1 x DDR5 Fan holder
- 1 x ASUS WiFi Q-Antenna
- 1 x Q-connector
- 1 x ROG logo plate sticker
- 1 x ROG screwdriver
- 1 x ROG stickers
- 1 x ROG VIP card
- 2 x M.2 Q-Slide packages
- 6 x M.2 backplate rubber packages
- 1 x ROG Bottle Opener
- 1 x USB drive with utilities and drivers
- 1 x Quick start guide
- Brand Compatibility
- Intel
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
