- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- Prime
- Product Type
- Gaming Desktop Motherboard

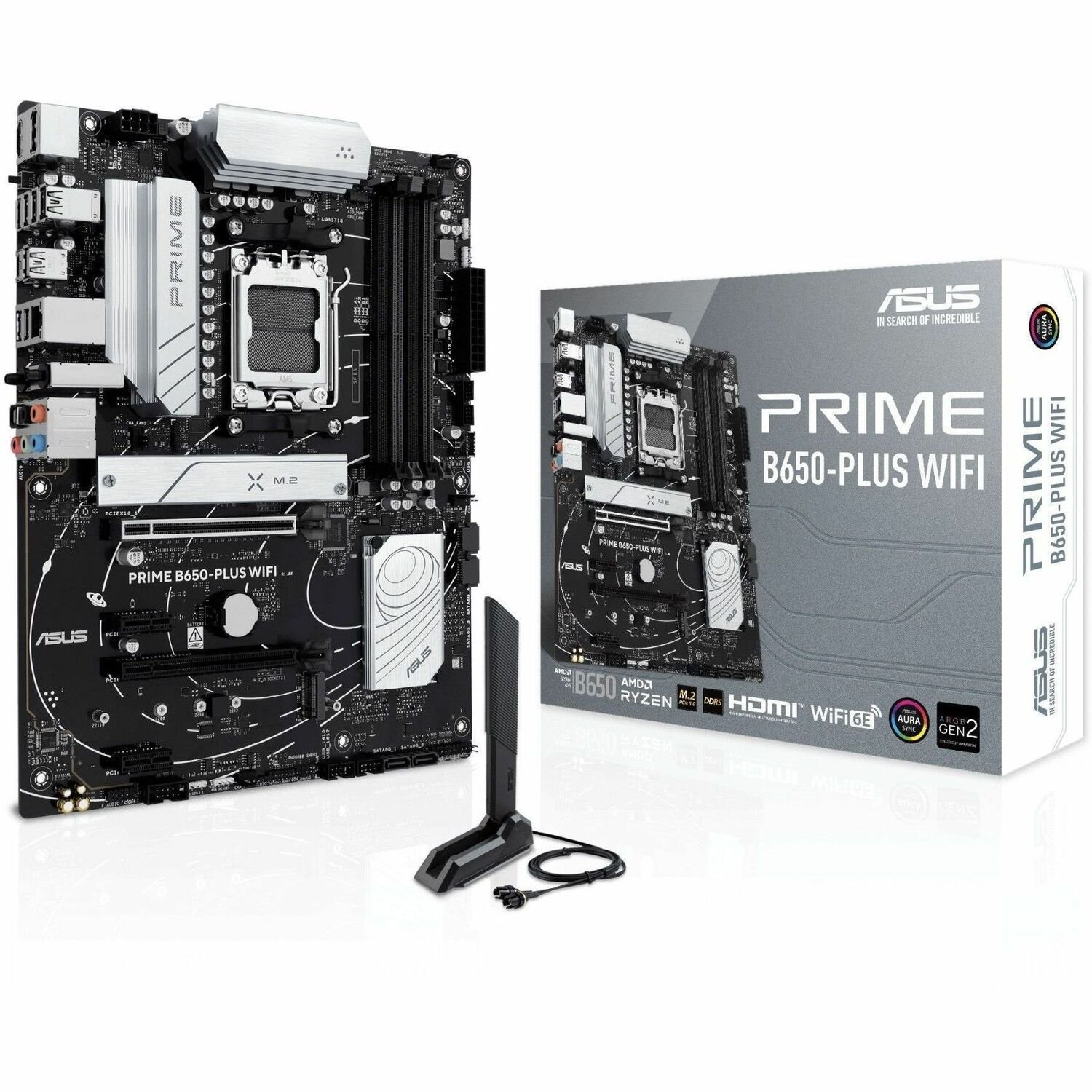

PRIME B650-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control | CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
COOLING
Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- B650
- Total Processor Supported
- 1
- Processor Socket
- Socket AM5
- Processor Supported
- Ryzen 7
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 7600 MHz
- 7200 MHz
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- I/O Expansions
- Total Number of Expansion Slots
- 5
- PCI Express Standard
- PCI Express 4.0
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 8
- S/PDIF
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Package Contents
- PRIME B650-PLUS WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x Wi-Fi moving antenna
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- 1 x User guide
- Brand Compatibility
- AMD
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
