AP8886 Features

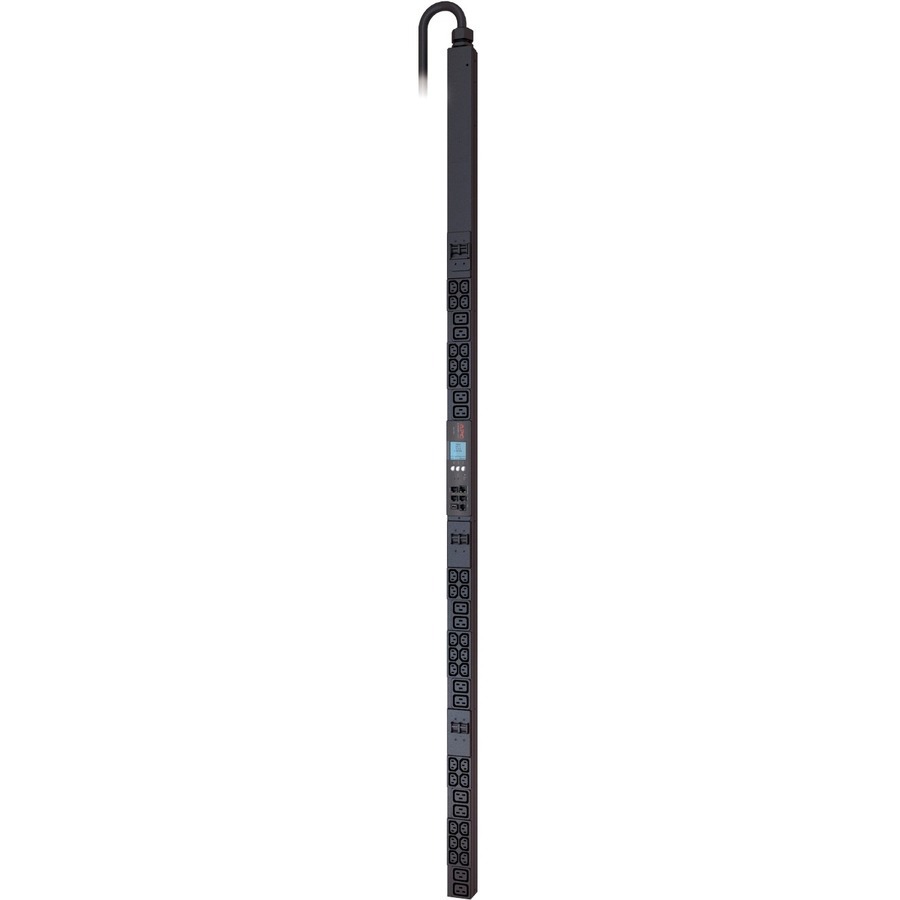

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type
- PDU
- Technical Information
- PDU Type
- Metered
- Phase
- Three Phase
- Plug/Connector Type
- IEC 60309 (3P+N+E) 32A
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 30 x IEC 60320 C13
- 12 x IEC 60320 C19
- Protection Type
- Overload Protection
- Circuit Protection
- Power Description
- Input Voltage
- 400 V AC
- Output Voltage
- 230 V AC
- Power Rating (VA)
- 22 kVA
- Power Rating (Watt)
- 22 kW
- Input Current
- 32 A
- Management
- Management
- Web
- SNMP
- Telnet
- Physical Characteristics
- Mounting Orientation
- Horizontal/Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Height
- 1829 mm
- Width
- 56 mm
- Depth
- 56 mm
- Weight (Approximate)
- 8.72 kg
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
