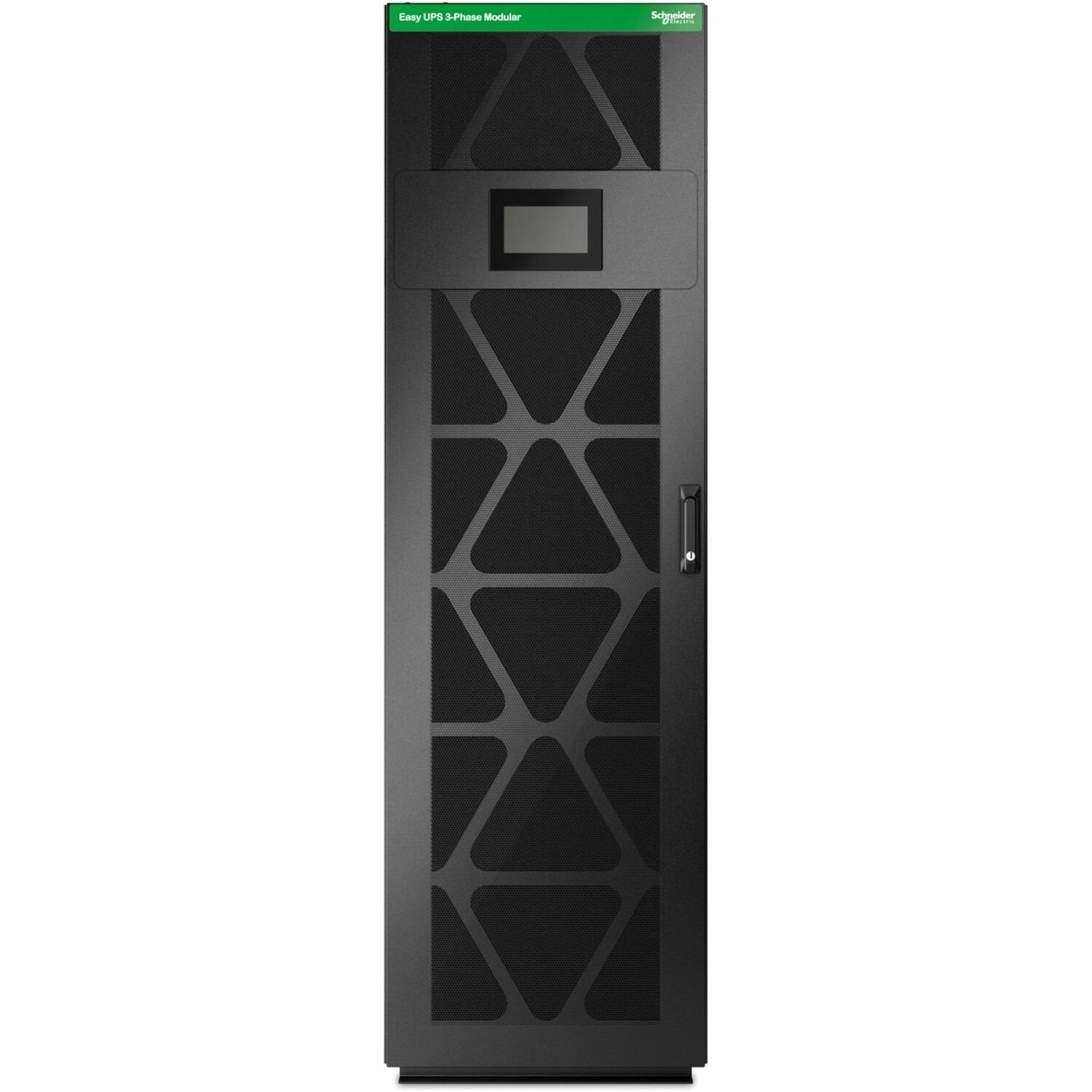

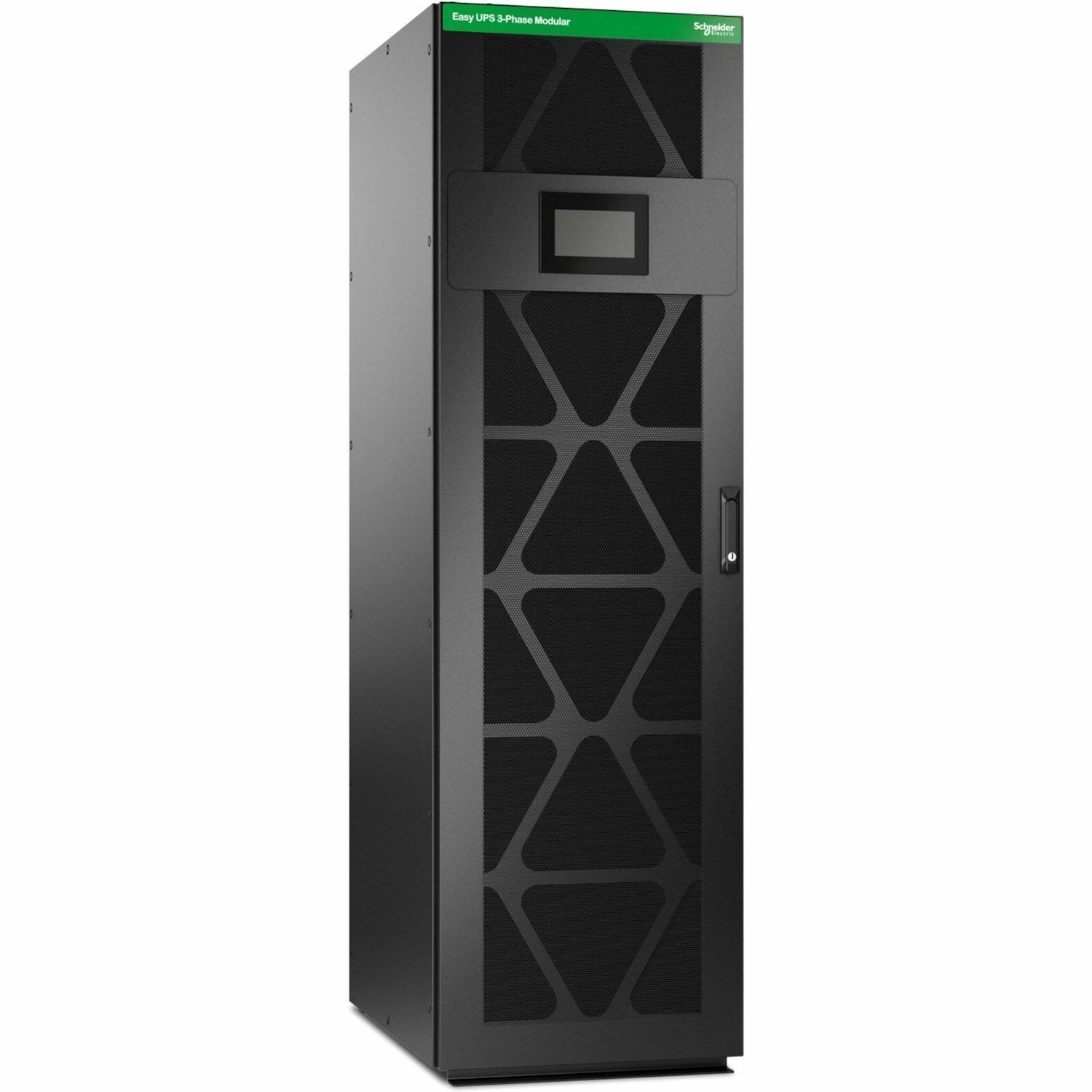

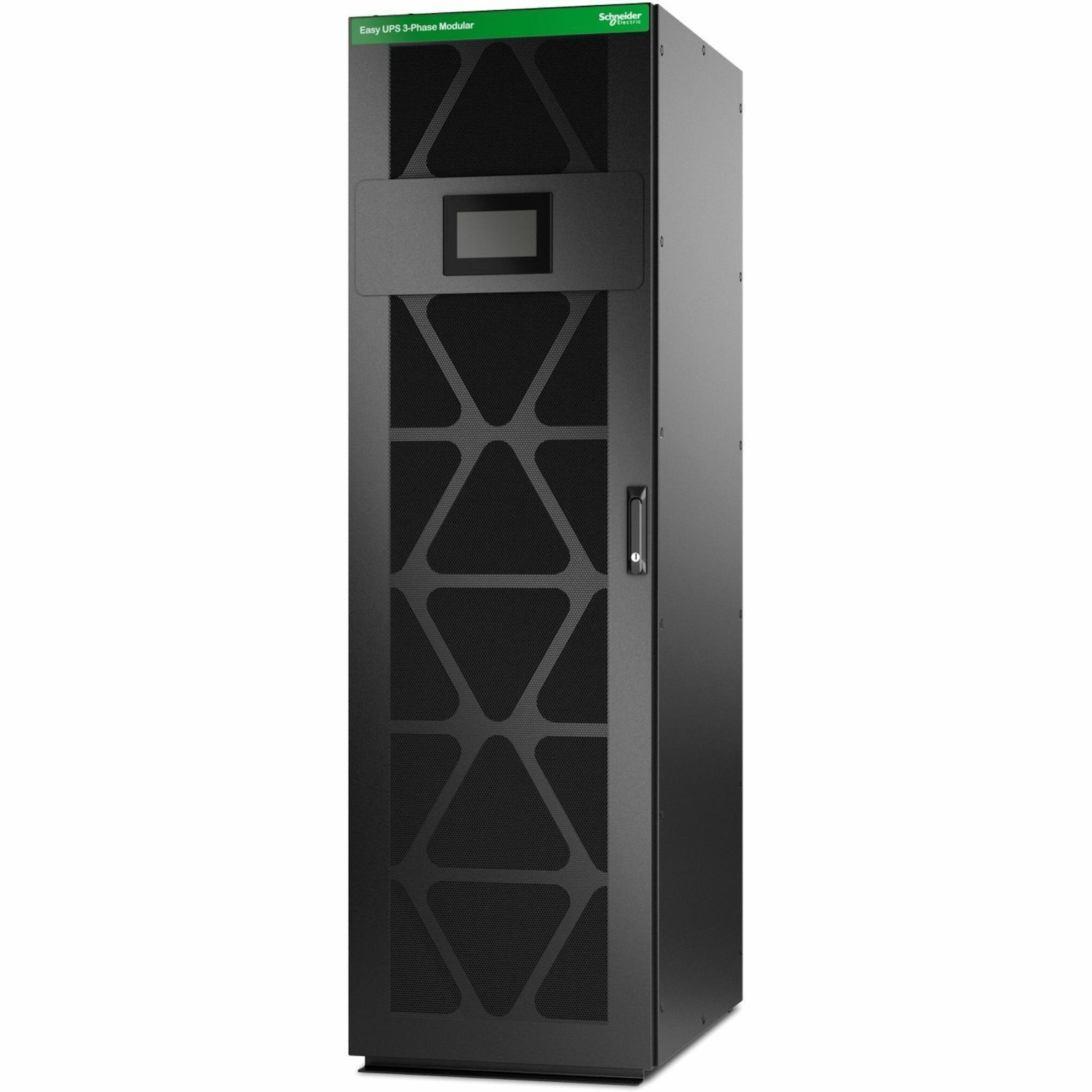

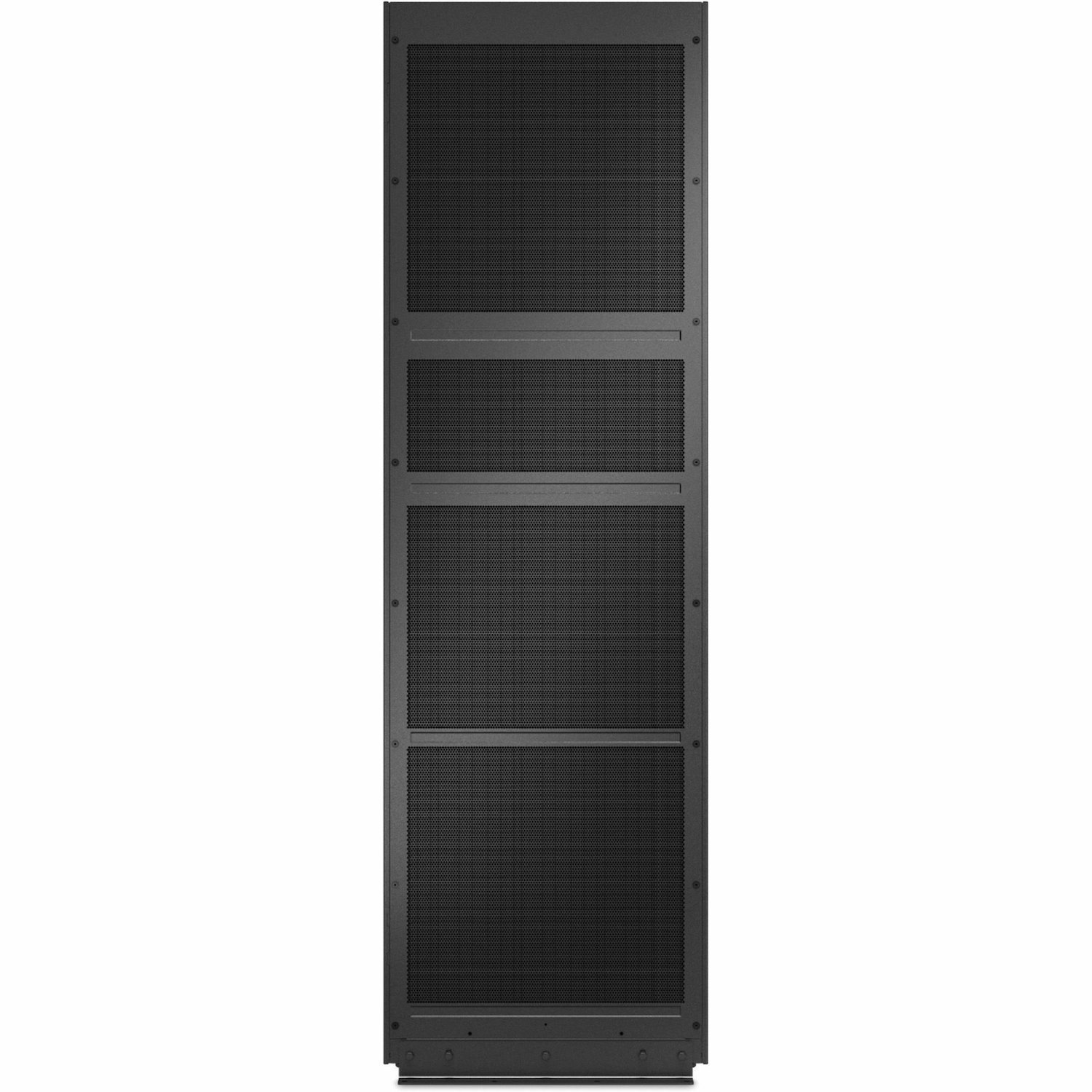

The Easy UPS 3-Phase Modular uninterruptible power supply is a robust, modular, high-density 50 kW, 400V 3-phase UPS that is scalable up to 250 kW N+1. It delivers high availability, scalability, and redundancy in a compact footprint in a cost-optimized, EcoStruxure connected package ideal for small and medium data centers and other business-critical applications. Includes 5x8 start-up service and 1 switch.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Easy UPS
- Packaged Quantity
- 1 Pack
- Product Type
- Double Conversion Online UPS
- Technical Information
- Phase
- Three Phase
- Application/Usage
- Data Center
- Business Critical Application
- Power Description
- Load Capacity (VA)
- 50 kVA
- Load Capacity (Watt)
- 50 kW
- Input Voltage
- 400 V AC
- Output Voltage
- 400 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Input Power Factor
- 0.7
- Management
- Network Management
- Network Card
- Interfaces/Ports
- USB
- Yes
- Battery Information
- DC System Voltage
- 576 V DC
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lead Acid
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -25°C - 55°C
- Maximum Operating Elevation
- 3 km
- Storage Relative Humidity
- 95%
- Sound Emission
- 74 dB
- Thermal Dissipation
- 8414 BTU/h
- Physical Characteristics
- Product Color
- Black
- Form Factor
- Modular
- Height
- 1991 mm
- Width
- 600 mm
- Depth
- 850 mm
- Weight (Approximate)
- 251 kg
